Description

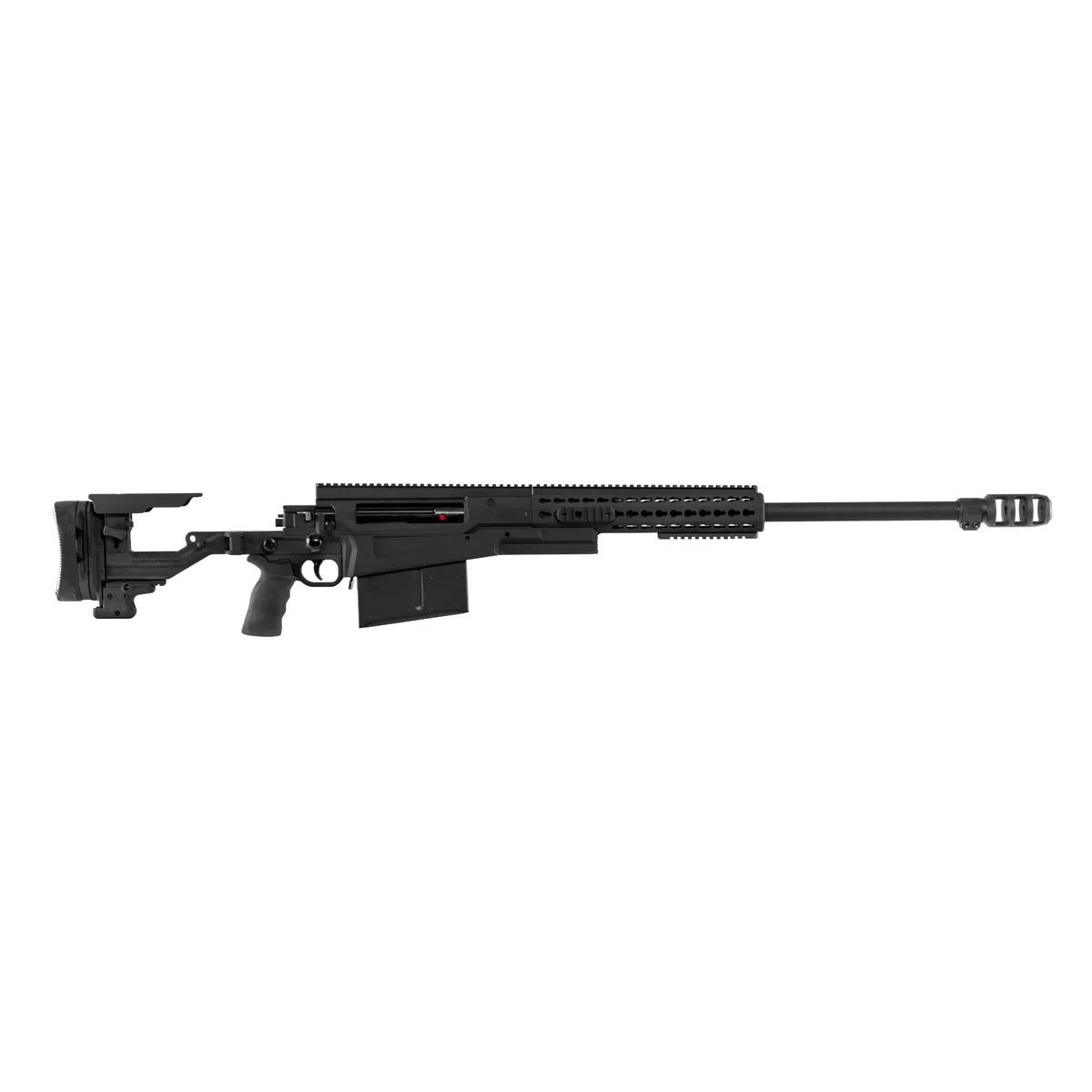

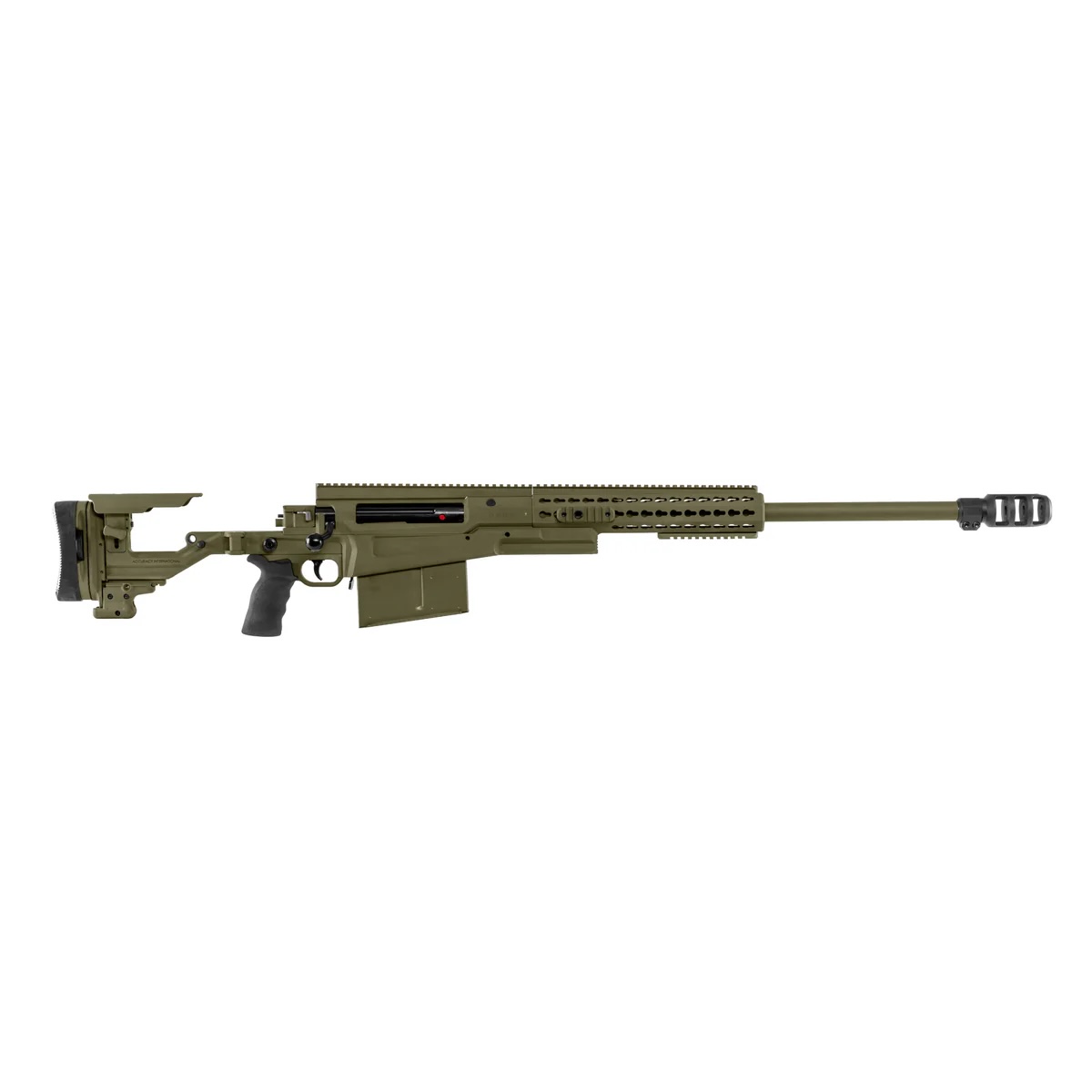

AX ELR FEATURES
Adjustable Comfort & Precision
- Butt Pad: Tool-free, quick-adjust system with spacers for precise length of pull (LOP) adjustment up to 49 mm (excluding spacers).
- Cheekpiece: Height-adjustable to accommodate night vision equipment or large objective telescopic sights. Convenient hex key storage beneath for easy barrel adjustments.
Enhanced Control & Stability
- Rear Grip: Rail-mounted rear grip with an optional quick-adjust butt spike accessory.
- Folding Stock: Rigid, right-folding stock locks securely over the bolt, reducing overall length by 241 mm.
Versatile Attachment Points
- Sling Points: Four flush cup-style sling points—two on the stock and one repositionable on each side of the KeySlot™ forend tube.
- Pistol Grip: Rubberized, AR-style replaceable pistol grip for comfort and control.
Safety & Trigger
- Safety: Three-position safety catch on the bolt shroud:
- Locked: Prevents bolt movement.
- Safe: Allows bolt manipulation.
- Fire: Engages the firing pin.
- Trigger: AI-standard two-stage trigger, adjustable for reach and weight (1.5–2 kg). Easily removable for cleaning with two socket-head screws.
Magazines & Action
- Magazine: 10-round, double-stack design with a slim-profile ambidextrous mag catch and left-side cutout for effortless insertion.
- Action: EN24T steel action and bolt body with maraging steel bolt head and lock ring. Features a 6-lug, 60° bolt throw, and a 45 MOA STANAG 4694/Mil-Std 1913 rail system.
Innovative Quick-Change System
- QUICKLOC: AI’s patented barrel removal/refit system enables caliber or length changes in minutes using the hex key stored under the cheekpiece.
Barrel & Muzzle
- Barrels: AI-profiled, cut-rifled stainless steel barrels manufactured in England with M39 barrel tenons for precision and durability.
- Muzzle Brake: AI’s triple-chamber design minimizes recoil, flash, and dust. Threaded (M24 x 1) for easy suppressor installation.
Mounting & Support
- Tripod Mount: Arca-Swiss-style rail integrated into the flat-bottomed forend.
- Barrier Support: Rugged chassis front face for stable barricade engagement.
- Forend: KeySlot™ mounting system for accessory rails with Arca-Swiss dovetail tripod compatibility.
The AX ELR delivers unmatched performance, combining innovation, versatility, and precision for the ultimate long-range shooting experience.
AX ELR SPECIFICATION
CALIBRE:
.50 BMG (12.7 x 99 mm)
WEIGHT:
With muzzle brake, empty magazine, standard accessory rails, no scope, no bipod: 12.06 kg
DIMENSIONS:
With 27” barrel & muzzle brake, 2 x 10 mm spacers
Full length: 1384 mm
Stock folded: 1143 mm
BARREL: .50 BMG: 27” bbl, 1 in 15” twist
BASE MODEL
• Right side folding stock over bolt
• Toolless, quick adjust cheekpiece
• Toolless, quick adjust buttpad with spacers
• LOP adjustment 49 mm (excluding spacers)
• Rear grip (rail mounted)
• Rubber AR style changeable pistol grip
• Flush cup sling attachment points
• 45 MOA STANAG 4694 / Mil Std 1913 action rail and forend rail
• Triple chamber muzzle brake
• 1 x 140 mm plain accessory rail
• 2 x 80 mm flush cup accessory rails
• User manual
• 1 x 10 round double stack CIP magazine
ACCESSORIES
• STANAG 4694 / Mil std 1913 accessory rails to attach to AI’s patented KeySlot™ mounting system
• AI Bipod and mounts for other bipod brands
• Quick adjust butt spike
• Suppressor
• Slings
• Transit cases
• Cleaning kits
