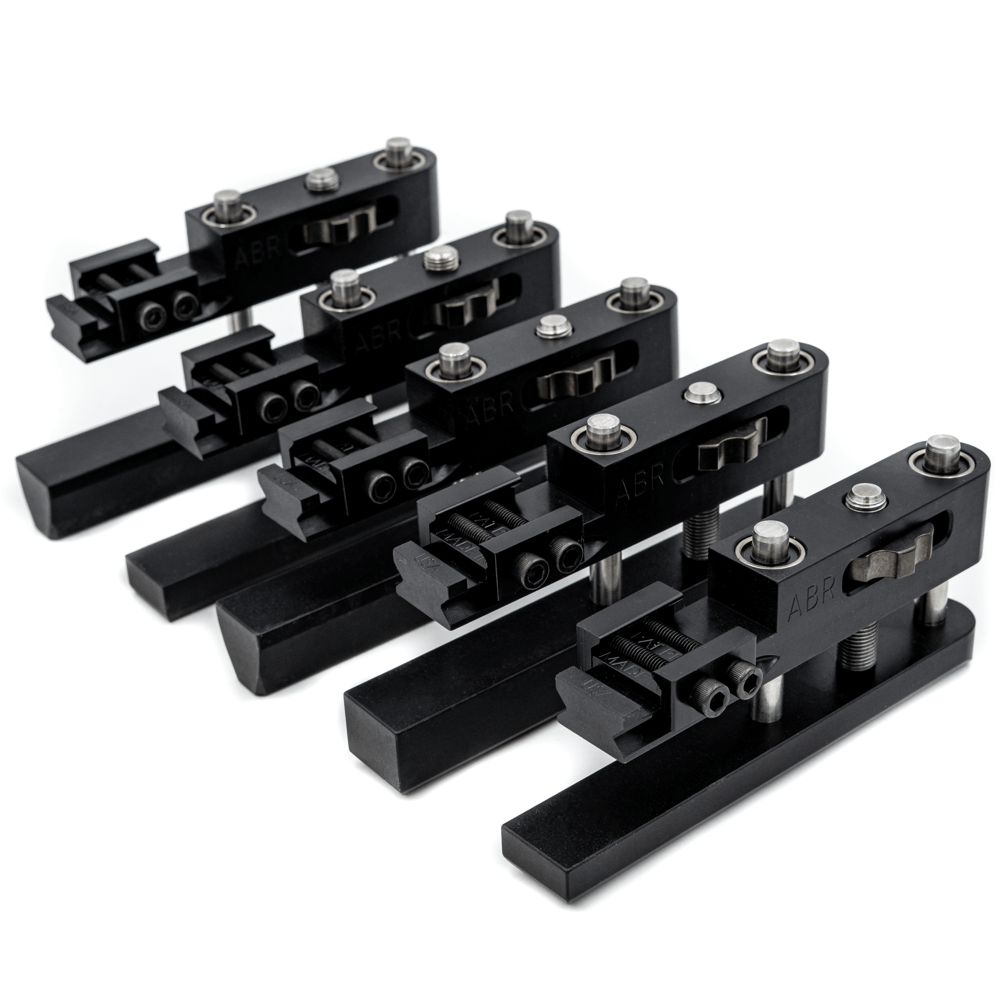

Rail Mounted ABR

Direct Bolt on Applications:

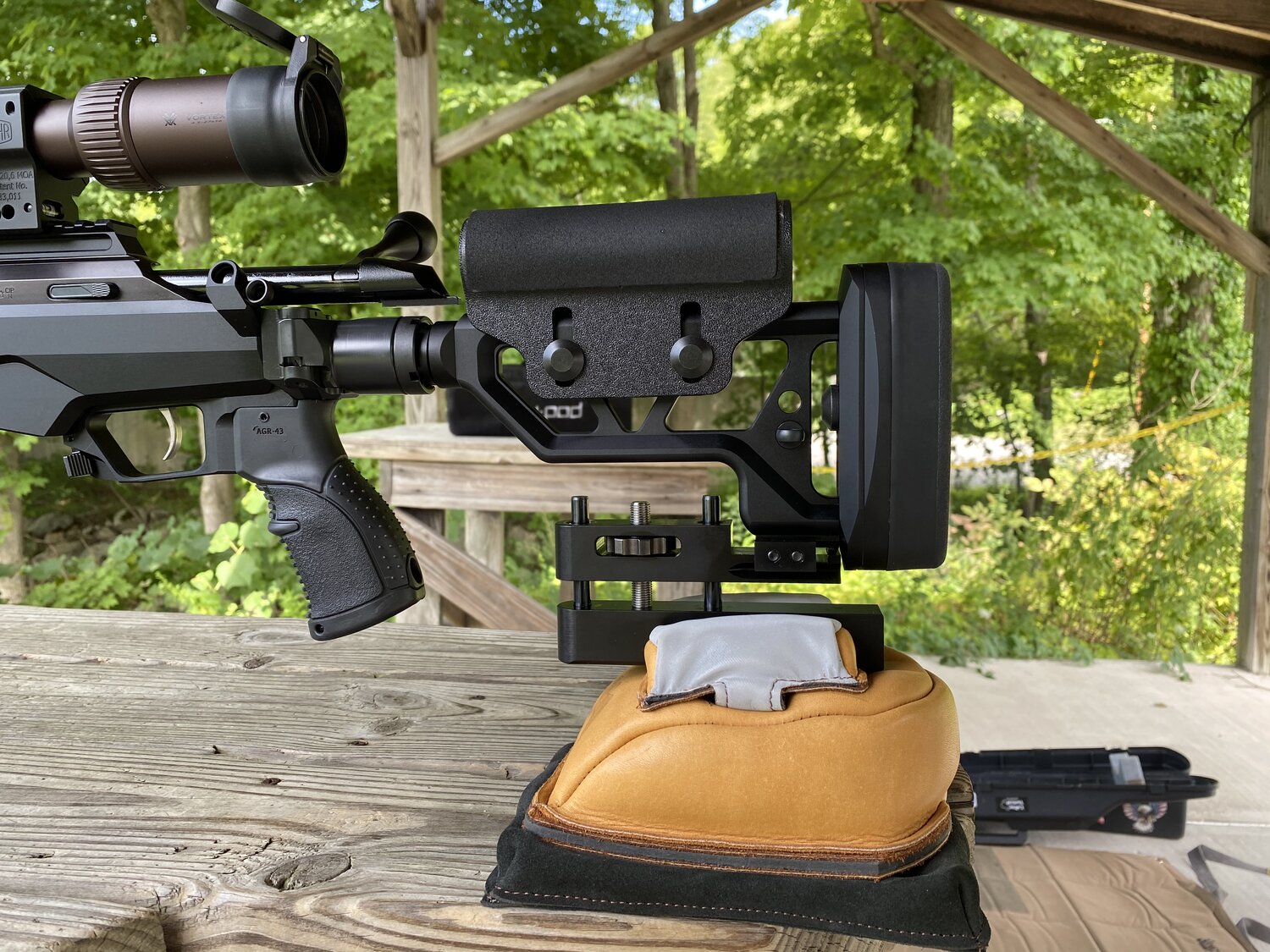

• Tikka T3X TAC A1 (Tikka Short Dowels )

• Christensen Modern Precision Rifle (Christensen Long Dowels-you must order the picatinny rail from Christensen Arms)

• RAPS – FAB Defense Stock (RAPS Long Dowels)

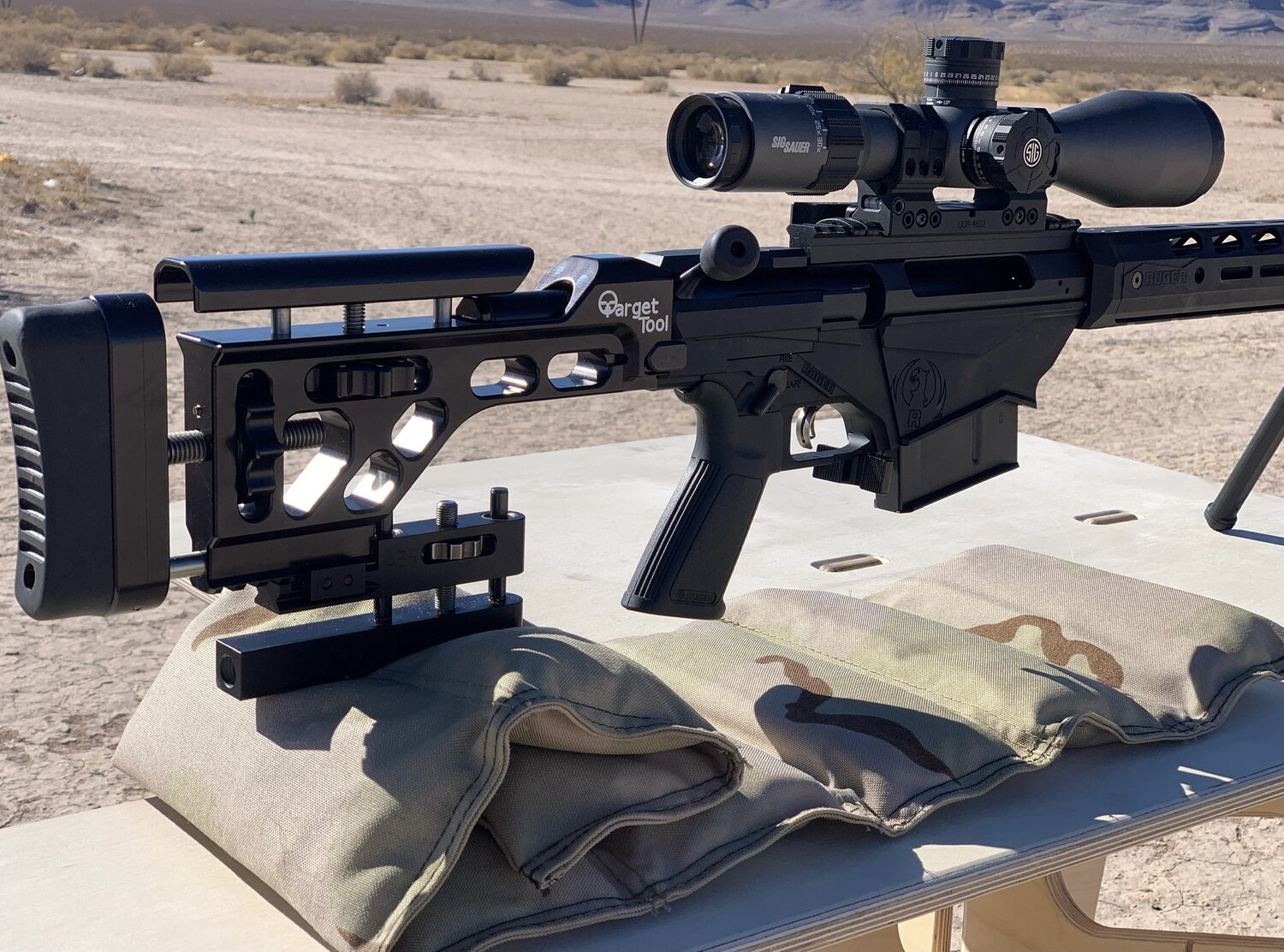

• Target Tool (Short Dowels) Modifications may be necessary Vertical Grip required

• GRS – WARG and Bifrost (picatinny rail required)

• Daystate Delta Wolf (Short Dowels)

• Ruger Precision Rifle Rimfire (RPRR – Short dowel) –Modifications Required see below(Drawing included for RPRR in the below link- click on below)

• Luth-AR – SEE PIC to left that has the “Luth-AR Modified” added to the bottom

• Oryx chassis – mount the M-lok pic rail available from the MDT site if a slot is on the bottom of your stock (If you don’t have a slot the MPA ABR can be mounted – if you drill and tap holes into the stock – contact me first)

Read more about the Rail Mounted ABR

Click on Pictures for larger view

RPR Rimfire will need minor mods. to clear the rear dowel – see pic to left. The RM-ABR can also be mounted more forward and will require much less work than the mod in picture to left. See above link for measurements on Rimfire hole spacing in Fig 3.

Do NOT lower the rider past the dowels being level with the top of the ABR.

Please note that this product does not fit the Ruger Precision Rimfire Rifle without modification. It does not fit the Ruger Precision Rifle or Magnum.

Caliber restrictions:
.338 and smaller calibers can use the Standard dowels
.33XC and larger needs the Hardened dowels
