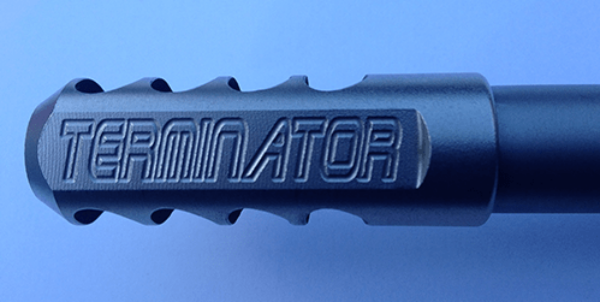

Terminator T1

Ports are 90 degrees to the ground to reduce disturbance. The ports are angled back away from the shooter to minimise shooter discomfort and maximise performance.

T1 Terminator muzzle brake is designed for .223 to 300 Winchester Magnums on barrels up to 17mm diameter.

The T1 dimensions are: 17.2mm, 0.677” diameter,  50mm, 1.96” long, 35-40 grams, 1.23-1.41 oz.

The T1 standard threads are:

• 7/16 x 28 for Kimber’s
• ½ x 28
• M13x0.75
• M13x1.25 for Brownings

The M13 x .75 has a .308 compatible through hole. The M13 x 1.25 has a .284 compatible through hole
The standard through hole is for a .224 & requires opening up to 0.025-0.030″ over bore size if used on larger calibres up to a maximum of 30 cal. The T1 does not have a top or bottom, has flats for a 15mm spanner so they can be easily fitted by a gunsmith.

It is recommended the rear of the brake be tapered down to the muzzle diameter when fitting.
