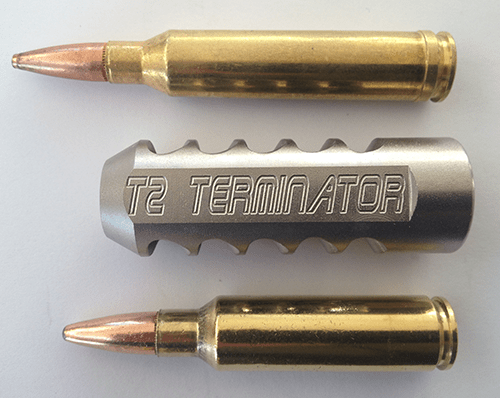

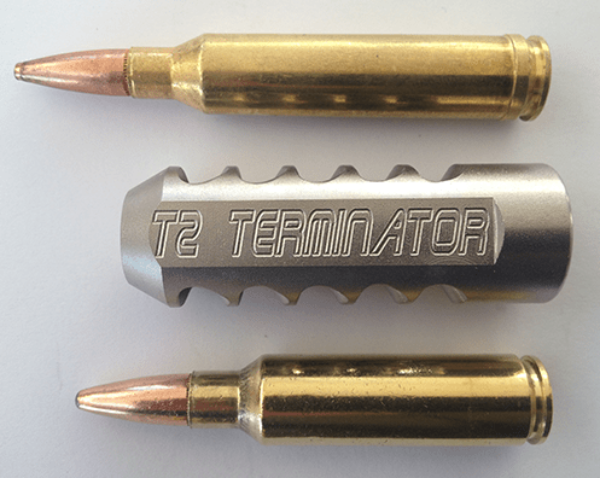

Terminator T2

Ports are 90 degrees to the ground to reduce disturbance.

The ports are angled back away from the shooter to minimise shooter discomfort and maximise performance.

It is recommended the rear of the brake be tapered down to the muzzle diameter when fitting.

The T2 standard threads are:

• ½ x 20, 28 & 32
• 9/16 x 24, 28 & 32
• 5/8 x 24 & 28
• 11/16 x 24
• M14, 15, 16 & 17×1

The T2 Dimensions are, 21mm, 0.82” diameter, 64mm, 2.36” long, 65-75 grams, 2.29-2.65 ozT2 Terminator muzzle brakes are designed for .223 to 300 Magnums on barrels up to 21mm diameter

The standard through holes is for a .224 & .308 require opening up to 0.025-0.030″ over calibre size if used on larger calibres.

The T2 does not have a top or bottom, has flats for a 19mm, ¾” spanner and a small indexing mark so they can be easily fitted by a gunsmith.
