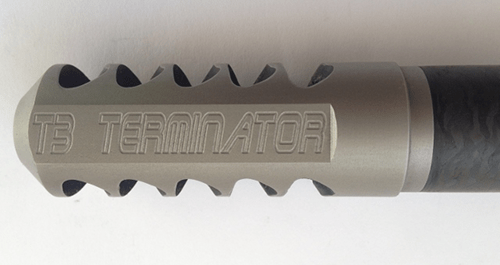

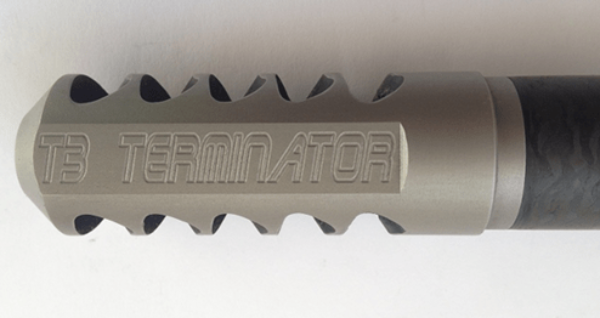

Terminator T3

Ports are 90 degrees to the ground to minimise debris disturbance

The ports are angled back away from the shooter to minimise shooter discomfort and maximise performance.

T3 Terminator muzzle brakes are designed for .223 to 338 Magnum cartridges on barrels up to 25mm diameter.

The standard T3 threads are:

• ½ x 28
• 9/16 x 24
• 9/16 x 28
• 5/8 x 24
• 5/8 x 28
• 5/8 x 32
• M14 x 1
• M15 x 1,
• M16 x 1
• M17x 1
• M18x 1
• M20 x 1
• 11 x 24
• 16 x 24
• ¾ x 24
• ¾ x 28

The T3 has a 7mm hole for up to .244 or 8.6mm hole for up to .308.

The T3 does not have a top or bottom, it has flats for a 23mm, 15/16 spanner and a small indexing mark so they can easily be fitted by a Gunsmith.

The standard through holes are for .264 & .308 calibres

It requires opening up to 0.025-0.030″ over bore size when fitted to larger calibres.

It is recommended the rear of the brake be tapered down to the muzzle diameter.

The T3 is 25mm, 0.984” diameter, 69mm, 2.72” long & weighs 85-115 grams, 2.99-4.05 oz. depending on thread.
