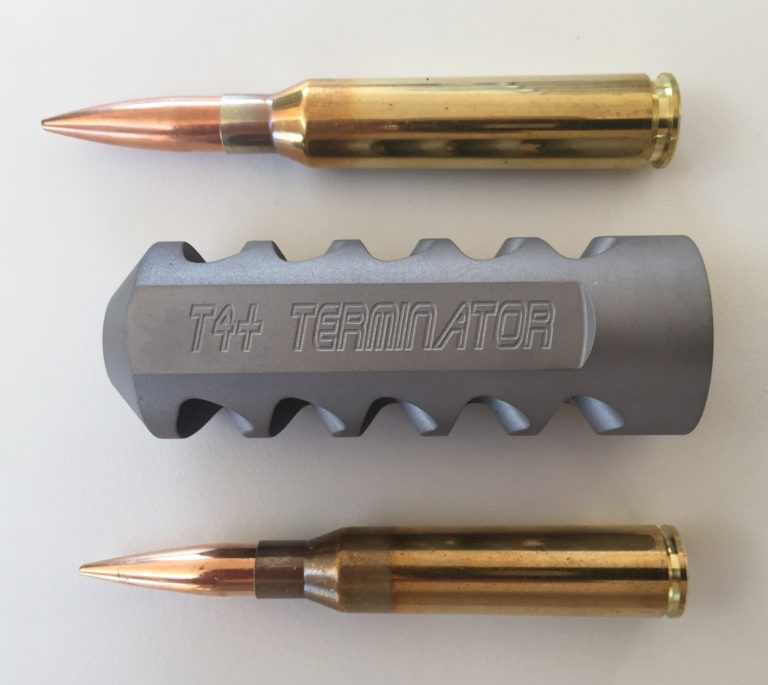

Terminator T4 Plus

Ports are 90 degrees to the ground to minimise debris disturbance.

The ports are angled back away from the shooter to minimise shooter discomfort and maximise performance.

T4+ Terminator muzzle brake is designed for 300 Magnums up to 375 Cheytac on barrels up to 31.75 mm, 1.250” diameter.

It is a true 1.250” specifically designed as requested to suit the straight zero taper 1.250 barrels.

The standard T4+ threads are 5/8 x 24, M18 x 1, ¾ x 24, 7/8 x 20 & 1.062” x 16 (Rem 700 Action thread)

The T4+ is 31.75, 1.250” diameter, 90 mm, 3.54” long, 190-240 grams, 6.7-8.5 oz

The T4+ has 8.6 mm through hole for up to .308 & requires opening up to 0.025-0.030″ over bore size when fitted to larger calibres

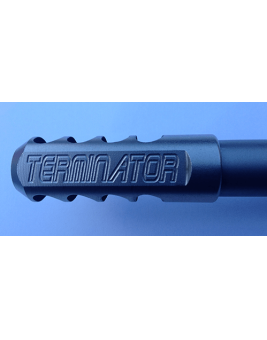

All Terminator muzzle brakes have flats for a spanner and so they can be easily fitted by a Gunsmith.

The through hole requires opening up to 0.025-0.030″ over calibre size.

It is recommended the rear of the brake be tapered down to the muzzle diameter if required.

The standard T4+ threads are:

• 5/8 x 24
• M18x 1
• ¾ x 24
• ¾ x 28
• 7/8 x 20
• 1.026″x 16 (Rem 700 Action thread)
