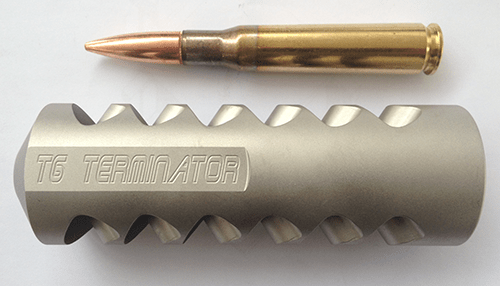

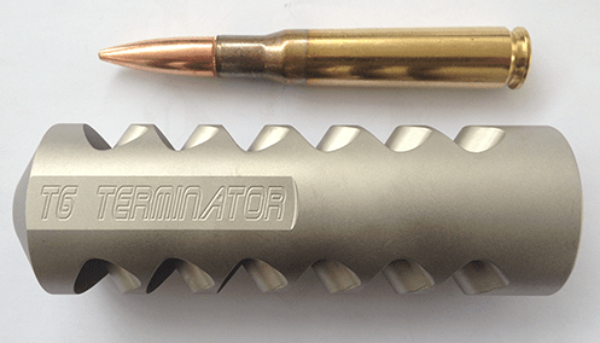

Terminator T6

The T6 Terminator muzzle brakes are designed for .375 Cheytac to 50 BMG on barrels up to 50mm diameter.

All Terminator muzzle brakes have flats for a spanner and so they can easily be fitted by a Gunsmith.

Ports are 90 degrees to the ground to minimise debris disturbance.

The ports are angled back away from the shooter to minimise shooter discomfort and maximise performance.

The through hole requires opening up to 0.030″ – 0.040” over calibre size.

It is recommended the rear of the brake be tapered down to the muzzle diameter.

The standard T6 threads are:

• 7/8 x 14
• 1” x 14
• M25 x 1.5

The dimensions are 50mm, 1.97” diameter, 153mm, 6” long, weight, 985-1015 grams, 34.7-35.8 oz

The 7/8 x 14 & 1” x 14 T6 has a 10.2mm through hole for .375

The M25 x 1.5 T6 has an 11.5mm through hole for .416 & require opening up to 0.030″ – 0.040 over bore size when fitted to larger calibres
